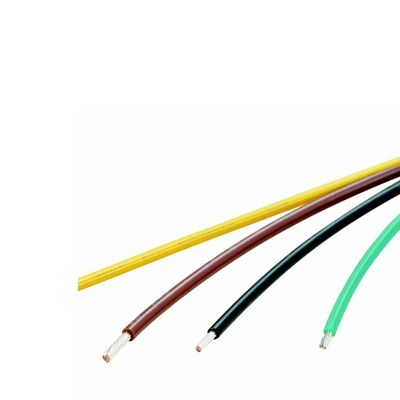

UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications

  • UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications
  • UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications
  • UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications
  • UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications
  • UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications
  • UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications
उत्पत्ति के प्लेस गुआंग्डोंग, चीन
ब्रांड नाम MYSUN
मॉडल संख्या UL8298
न्यूनतम आदेश मात्रा 3050

नि: शुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।

Whatsapp:0086 18588475571

WeChat: 0086 18588475571

स्काइप: sales10@aixton.com

यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।

x
उत्पाद विवरण
कंडक्टर सामग्री टिन्डेड कॉपर व्यास 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 26 AWG
इन्सुलेशन सामग्री पीएफए रेटेड वोल्टेज 450V, 750V
कंडक्टर प्रकार ठोस आकार गोल
तापमान रेटिंग 250 ℃ कंडक्टर प्रतिरोध 59.78 Ω/KM (0.34mm2), 40.1 Ω/KM (0.50mm2), 26.7 Ω/KM (0.75mm2), 20 Ω/KM (1.00mm2), 14.35 Ω/KM (1.25m
एकक लंबाई 305/1000 मीटर/फीट कंडक्टर निर्माण 7/0.15 (0.34mm2), 7/0.19 (0.50mm2), 19/0.23 (0.75mm2), 19/0.26 (1.00mm2), 19/0.29 (1.25mm2), 19/0.32
इन्सुलेशन मोटाई 0.305मिमी (0.34-1.50मिमी2), 0.350मिमी (2.00-2.50मिमी2) तार का व्यास 1.36 मिमी (0.34 मिमी 2), 1.56 मिमी (0.50 मिमी 2), 1.78 मिमी (0.75 मिमी 2), 1.91 मिमी (1.00 मिमी 2),
कंडक्टर व्यास 0.75 मिमी (0.34 मिमी 2), 0.95 मिमी (0.50 मिमी 2), 1.17 मिमी (0.75 मिमी 2), 1.31 मिमी (1.00 मिमी 2), वेल्टेज रेटिंग 450/750 वी
इन्सुलेशन प्रकार पीएफए
प्रमुखता देना

Solid Conductor PFA Wire

,

Round Shape PFA Wire

,

Medical Equipment PFA Wire
एक संदेश छोड़ें
उत्पाद विवरण
UL8298 PFA Wire - High Temperature Sensor Wire
Premium PFA Wire Supplier for Fortune 500 Companies
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 0 UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 1
Technical Specifications
UL8298 UL1330 Conductor Insulation Max. Cond Resistance (Ω/KM) Unit Length (M)(Ft)
Size (mm²) Construction (No.mm) Diameter (mm) Nominal Thickness (mm) Diameter (mm)
0.34 7/0.15 0.75 0.305 1.36 59.78 610/2000
0.50 7/0.19 0.95 0.305 1.56 40.1 305/1000
0.75 19/0.23 1.17 0.305 1.78 26.7 305/1000
1.00 19/0.26 1.31 0.305 1.91 20 305/1000
1.25 19/0.29 1.46 0.305 2.16 14.35 305/1000
1.50 19/0.32 1.61 0.305 2.31 13.7 305/1000
2.00 19/0.37 1.85 0.350 2.55 8.78 305/1000
2.50 19/0.41 2.06 0.350 2.76 7.16 305/1000
Click Contact us Get the Best Quote

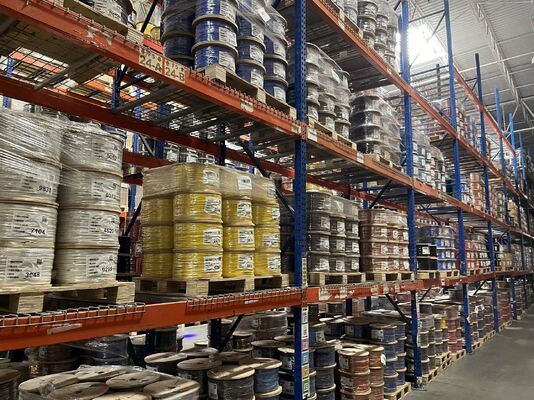

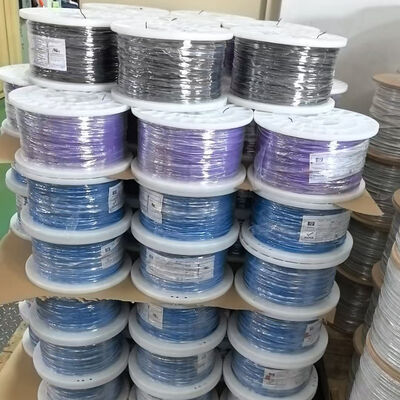

Company Profile
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 2 UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 3

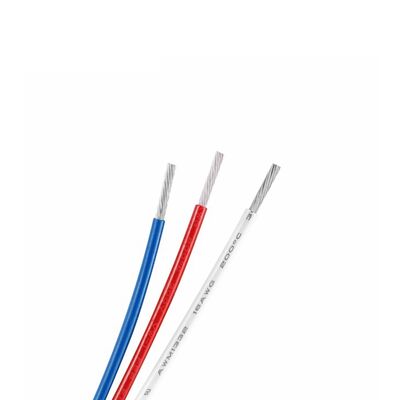

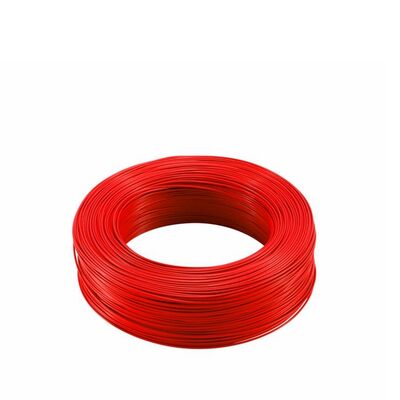

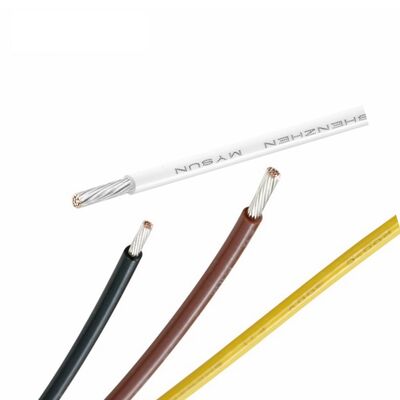

Our Product Range
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 4
Applications
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 5
Global Clients
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 6
Industry Exhibitions
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 7
Certifications
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 8
Frequently Asked Questions
  • Who Are We? Professional manufacturer of high-temperature wires and cables with 26 years of experience, headquartered in Shenzhen with production bases in Dongguan and Jingzhou.
  • What We Provide: High-temperature wires and cables, silicone tubing including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
  • Why Choose Us: Free samples, competitive pricing, high quality standards, and customized services.
  • Certifications: UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
  • Services: Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment methods: T/T, L/C, PayPal, Western Union, Cash.
